K120252
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

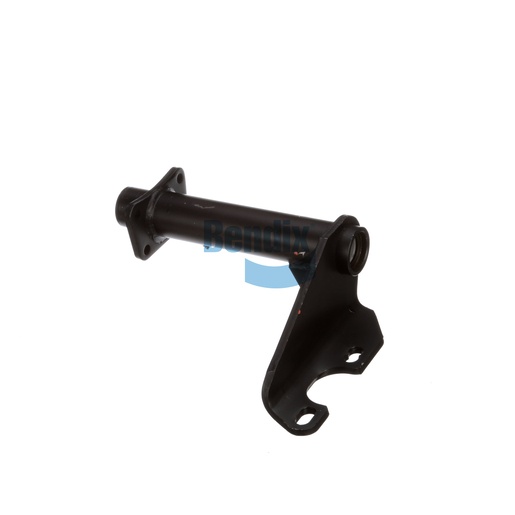

The Bracket Assembly is a crucial component in Bendix's foundation drum brake system, designed to provide robust support for air chambers and camshafts. This assembly features a full arm style and a camshaft bracket angle of 90° counterclockwise, ensuring optimal alignment and performance of your braking system. With a length of 15.75 inches, it is made from high-quality materials in the United States, ensuring durability and reliability in heavy-duty applications. This bracket assembly helps reduce wear on braking components, extending their lifespan and improving overall vehicle safety. Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring your commercial vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
400.0 mm (15.75 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.65 lb
