K120253

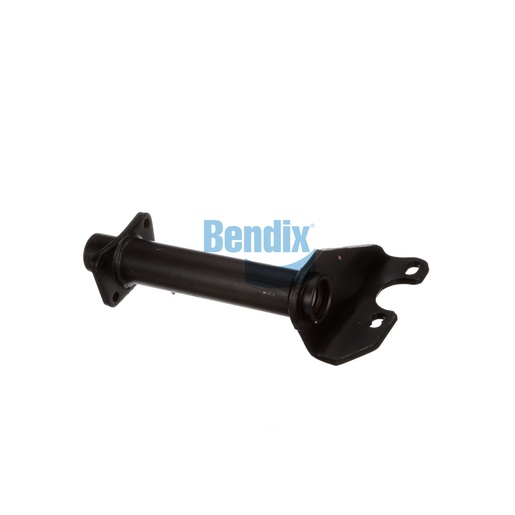

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly constructed to provide essential support for drum brake systems in commercial vehicles. This bracket features a full arm style and a single gusset, delivering superior strength and durability, which are vital for effective brake function under heavy loads. The assembly boasts nylon bushings for inboard applications and bronze bushings for outboard applications, enhancing its longevity and resilience against wear. With a length that varies between 5.50 and 6.00 inches and a camshaft bracket angle of 90 degrees clockwise, it allows for precise installation and optimal brake performance. Measuring 15.75 inches from centerline to centerline, this bracket assembly is compatible with a wide range of trucks, ensuring dependable operation. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your go-to source for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.75
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
400.0 mm (15.75 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.65 lb
