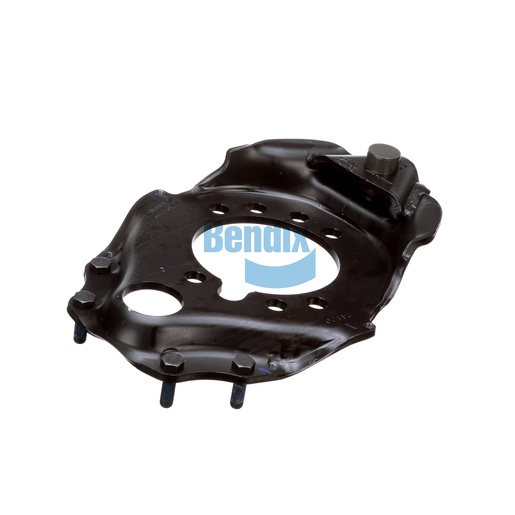

K120528N
Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly is a critical component in the foundation drum brake system, designed to provide essential support and functionality. This assembly facilitates the connection between various brake components, ensuring smooth operation during braking. Made from high-quality materials, it is built to withstand the rigors of heavy-duty use, offering reliable performance over time. With a length of 3.74 inches and a weight of 16.7 pounds, this spider assembly is designed for compatibility with various brake systems, making it a versatile choice for fleet maintenance. By using quality parts like this, you enhance the reliability of your braking system. Source One Parts Center is your top source for genuine Bendix OEM parts, delivering quality solutions for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
16.7 lb
