$839.95
$1,007.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

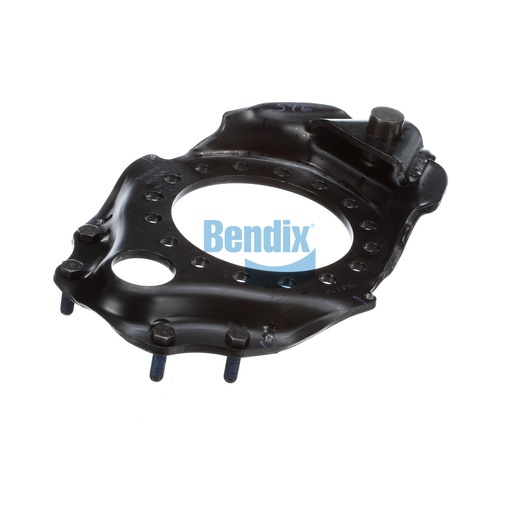

The Spider / Pin Assembly is an integral part of your Bendix drum brake system, designed to provide critical support and alignment for braking components. This assembly is engineered for durability, ensuring it can withstand the high demands of heavy-duty applications. With dimensions of 3.74 inches in length and a weight of 15.45 pounds, it is designed for easy installation, contributing to the overall efficiency of your braking system. By maintaining proper alignment of the brake shoes and ensuring effective braking performance, this assembly enhances the safety and control of your vehicle. Choosing this high-quality component will lead to improved stopping power and reliability on the road. Source One Parts Center is your reliable supplier of genuine Bendix OEM parts, ensuring you receive the best components for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
15.45 lb
