K120555N

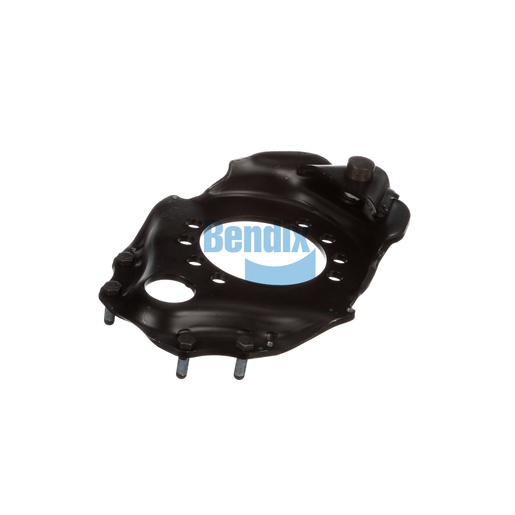

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is an integral part of your truck's braking system, designed to provide stability and support during braking operations. This assembly is crafted with precision to ensure a perfect fit and optimal performance, contributing to the overall effectiveness of your vehicle's drum brakes. Its robust design minimizes flex and wear, ensuring reliable longevity even under heavy loads and challenging conditions. The assembly is engineered to facilitate smooth operation, enhancing the responsiveness of your braking system. By investing in this high-quality component, you enhance the safety and efficiency of your commercial vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the ideal place to shop, providing trusted quality and service.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
14.75 lb
