$729.95
$875.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

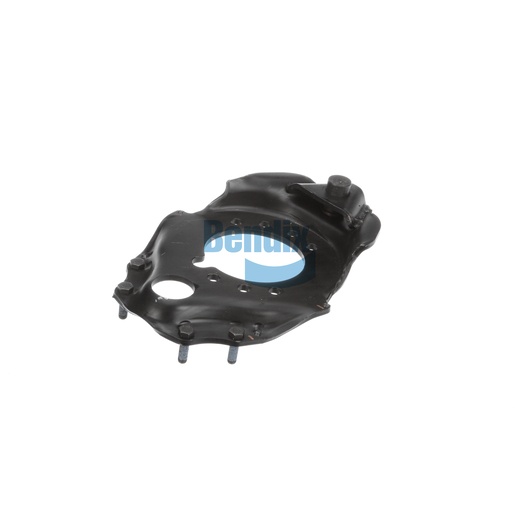

The Spider / Pin Assembly is an essential part of the drum brake system in commercial vehicles, providing critical support and alignment for brake shoes. Designed for durability and reliability, this assembly is constructed to withstand the demanding conditions of heavy-duty applications. Its robust design ensures optimal performance during braking, contributing to enhanced safety and control on the road. Weighing just 7.6 kg, the assembly is manageable and easy to install, making it a practical choice for fleet maintenance. By choosing quality components like the Spider / Pin Assembly, fleet operators can enhance the efficiency and reliability of their braking systems. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, delivering quality and performance.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Width
308.0 mm (12.13 in)
Height
406.0 mm (15.98 in)
Harmonized System (HS) Code
870830
Length
95.0 mm (3.74 in)
Country of Origin
United States
Weight
16.65 lb
