K120736

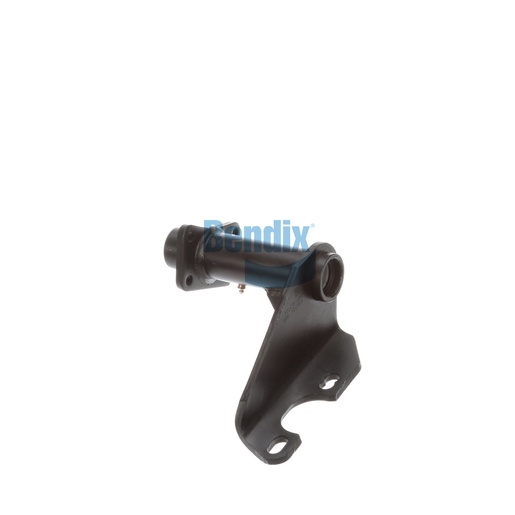

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is engineered for durability and performance, making it an essential component for your truck's braking system. This assembly features a robust design with single gusset construction, allowing for enhanced stability and support for air chambers and camshafts. Its nylon and bronze bushings provide smooth operation and minimize wear, ensuring that your braking system functions effectively under challenging conditions. With a length that accommodates various setups, this assembly is versatile and easy to install. For those seeking reliability and quality, Bendix delivers, and there's no better place to find these parts than Source One Parts Center, your trusted source for genuine Bendix OEM products.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
