K121170N

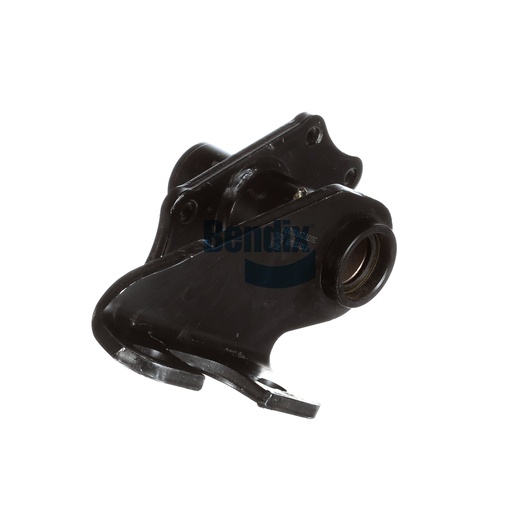

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is integral to the stability and performance of your vehicle's braking system. Featuring a single gusset design and scalloped arm style, this assembly ensures robust support for air chambers and camshafts. Its nylon bushings facilitate smooth operation while minimizing wear, promoting longevity and reliability. This component is designed for straightforward installation, making it a practical choice for maintenance professionals. For authentic Bendix OEM parts that you can trust, Source One Parts Center is your best source for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
220.0 mm (8.66 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
