K121171N

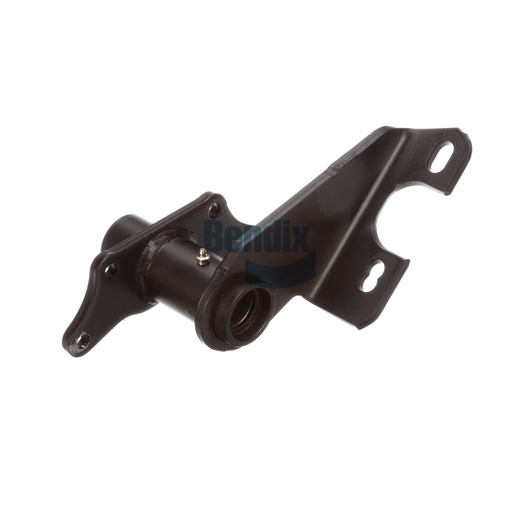

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential support component for foundation drum brakes in commercial vehicles. This assembly features a single gusset and a scalloped arm style, engineered for durability and strength under load. With a camshaft bracket angle of 310° CW, it ensures optimal alignment within the braking system, enhancing overall performance and safety. Weighing approximately 5.3 kg, it strikes a balance between robustness and manageable weight for easy installation. The high-quality materials used in this bracket assembly ensure it can withstand the demands of heavy-duty applications, making it a reliable choice for fleet operators. When it comes to sourcing quality parts, Source One Parts Center is your best option for genuine Bendix OEM components, ensuring you receive the best for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
220.0 mm (8.66 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.76 lb
