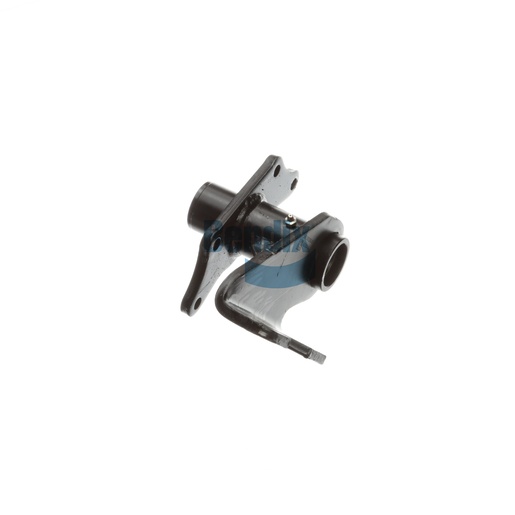

K121182N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly crafted to support air chambers and camshafts in commercial vehicles, ensuring optimal brake performance. Featuring a scalloped arm style and a single gusset for added strength, this bracket is designed to withstand the rigors of heavy-duty applications. With a camshaft bracket angle of 324° CCW and a slack length ranging from 5.5 to 6 inches, it provides precise alignment and adaptability across various vehicle configurations. The use of high-quality nylon bushings enhances durability while reducing wear, making it an ideal choice for long-term use. This bracket assembly simplifies installation and maintenance, ensuring that your braking system operates at peak efficiency. For all your genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
220.0 mm (8.66 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
324° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.68 lb
