$419.95
$503.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

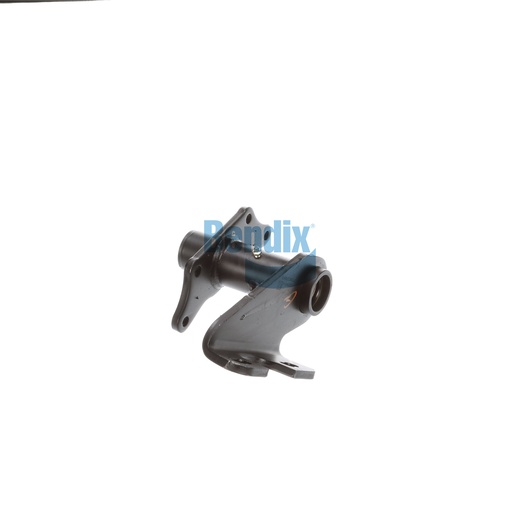

The Bendix Bracket Assembly is expertly crafted to provide essential support for your vehicle's air chamber and camshaft systems, enhancing the overall performance of the braking system. Featuring a single gusset and scalloped arm style, this assembly is designed for durability and reliability during heavy-duty operations. With a camshaft bracket angle of 310° CCW and a length from centerline to centerline of 10.00 inches, it offers precise installation options for various vehicle models. Built to withstand the rigors of commercial use, this bracket assembly ensures long-lasting performance. For genuine Bendix OEM parts, Source One Parts Center is your top choice, delivering quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.00
Length
254.0 mm (10.0 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.36 lb
