K121435N

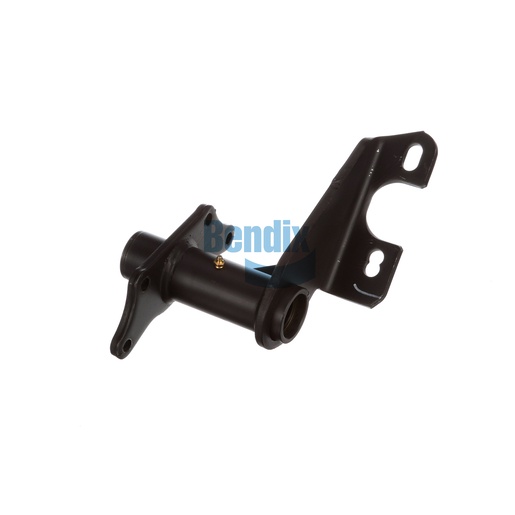

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to support the integrity of air brakes in commercial vehicles. This sturdy assembly features a single gusset and a scalloped arm style, ensuring a reliable hold under pressure. Measuring 365 mm wide and 292 mm high, this bracket is engineered for optimal performance, providing essential support for air chambers and camshafts. Its durable construction, combined with nylon bushings, helps reduce friction and wear, leading to extended lifespan and reduced maintenance costs. The bracket’s precise measurements and technical attributes make installation straightforward, allowing for quick repairs and minimizing downtime on the road. This component is an ideal choice for fleets looking to enhance safety and reliability. For genuine Bendix OEM parts, turn to Source One Parts Center, the best choice for all your commercial truck needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.00
Length
254.0 mm (10.0 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
310° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.25 lb
