$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

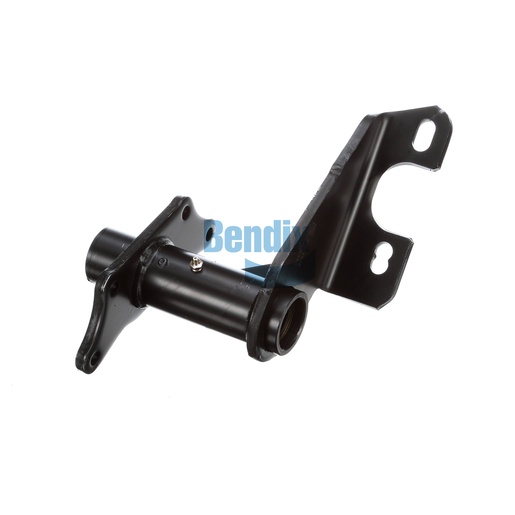

The Bendix Bracket Assembly is crafted to provide robust support for your vehicle's air chamber and camshaft, ensuring reliable brake performance. This assembly features a scalloped arm design with a single gusset, enhancing its strength and stability during operation. Engineered from high-quality materials, it minimizes wear and tear while ensuring precise alignment for effective brake function. With a centerline length of 10.25 inches and a camshaft bracket angle of 314° CW, this bracket assembly is optimized for heavy-duty applications, making it a crucial component for commercial vehicles. Frequent use in rugged conditions can take a toll on brake systems, making the integrity of this bracket assembly vital for safety. By investing in this part, fleet managers can ensure extended service life and reduced maintenance costs. Source One Parts Center is your reliable source for genuine Bendix OEM parts, helping you keep your commercial vehicles running smoothly and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.25
Length
261.0 mm (10.28 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
