K121537N

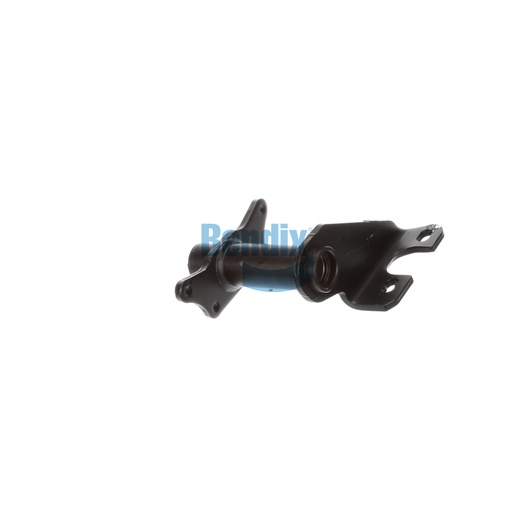

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral component of the foundation drum brake system in commercial trucks, designed for superior performance and reliability. This assembly, crafted in the USA, features a single gusset and a scalloped arm style that enhances its strength. With a camshaft bracket angle of 90° CW and precise dimensions for optimal fit, it ensures seamless integration into the braking system. This bracket assembly is built to withstand the rigors of heavy-duty use, making it essential for fleet maintenance and safety. When it comes to sourcing high-quality parts, Source One Parts Center offers the best selection of genuine Bendix OEM components, ensuring your vehicles are equipped for reliability and efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.50
Length
267.0 mm (10.51 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
12.67 lb
