$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

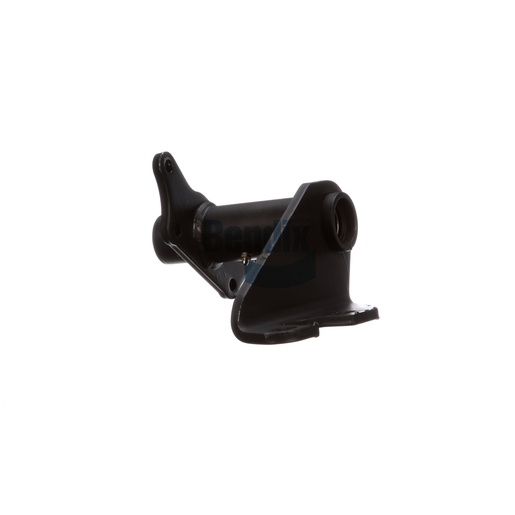

The Bendix Bracket Assembly is expertly designed to provide reliable support for drum brake systems, ensuring optimal performance in commercial vehicles. This assembly features a full arm style and a single gusset, delivering enhanced strength and durability essential for heavy-duty applications. With a camshaft bracket angle of 56 degrees counter-clockwise and a centerline length of 10.75 inches, it guarantees precise alignment for effective braking. Constructed with high-quality materials, this assembly is built to last, making it a dependable choice for fleet maintenance. For genuine Bendix OEM parts, Source One Parts Center stands out as the best option for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.42 lb
