$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

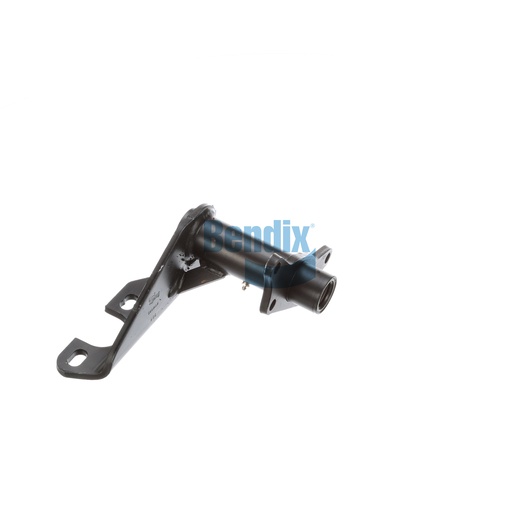

The Bracket Assembly is an indispensable part of the Bendix foundation drum brake system, designed to provide robust support for air chambers and camshafts. Its full arm style and single gusset design allow for enhanced durability and strength, ensuring that your braking system operates smoothly under pressure. Constructed with high-quality materials, this assembly is engineered to withstand the demanding conditions of commercial vehicle use, promoting longevity and reliable performance. The adjustable slack length feature allows for flexibility in installation, accommodating various configurations while ensuring the brake system functions efficiently. With a camshaft bracket angle of 56° CW, this assembly ensures precise alignment, crucial for the effective operation of the braking system. For those who prioritize quality and reliability, Source One Parts Center is the go-to destination for genuine Bendix OEM parts, ensuring that your fleet operates at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13 lb
