K121636N

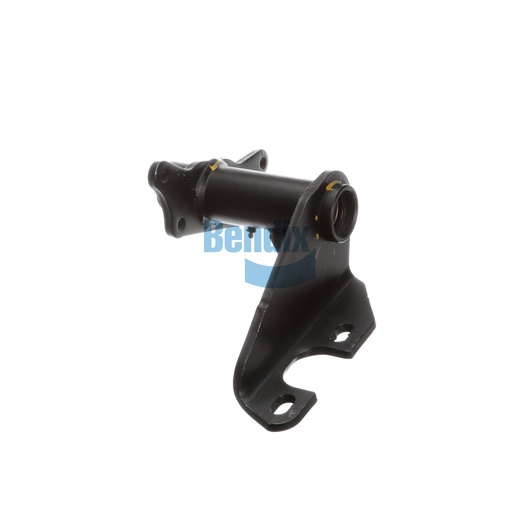

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for durability and optimal performance in your truck's braking system. This assembly features a full arm style with a single gusset, offering exceptional strength and stability. Designed to accommodate varying slack lengths and equipped with high-quality nylon and bronze bushings, this bracket ensures smooth operation and minimal maintenance. The camshaft bracket angle of 64° CCW allows for precise alignment, enhancing the overall efficiency of the brake system. This component plays a vital role in ensuring that brake components operate seamlessly, providing safety and reliability during operation. By choosing this bracket assembly, you're investing in a product that not only meets but exceeds industry standards. For genuine Bendix OEM parts, Source One Parts Center stands out as the premier source, offering unparalleled quality and service for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
