$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

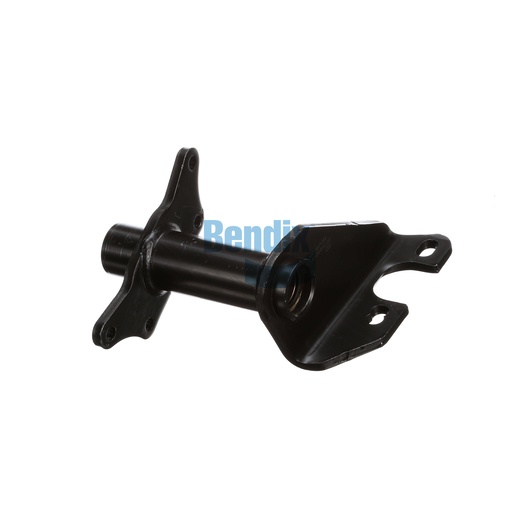

The Bracket Assembly from Bendix is a high-performance component designed for foundation drum brakes, offering essential support for air chambers and camshafts. This assembly is crafted with a single gusset and full arm style, ensuring maximum strength and stability during operation. The nylon bushings incorporated into the design enhance durability and reduce wear, contributing to a longer lifespan for the braking system. Weighing in at 6.1 kg, this bracket is engineered for easy installation and reliable performance across various vehicle models. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your premier destination for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.75
Length
273.0 mm (10.75 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.4 lb
