$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

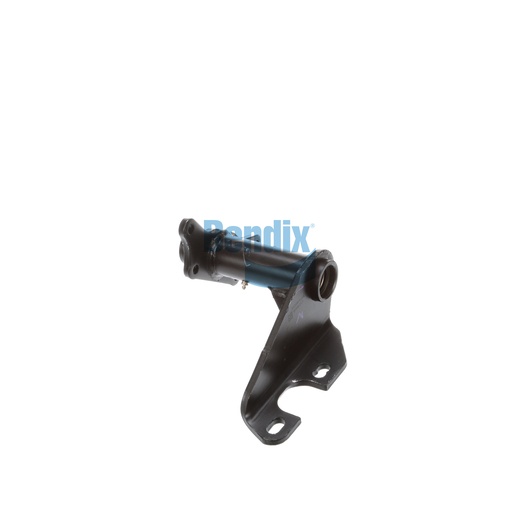

The Bendix Bracket Assembly is expertly designed to provide essential support for your commercial vehicle's braking system. With its single gusset construction and scalloped arm style, this assembly ensures optimal structural integrity while minimizing weight. This bracket is engineered for easy installation and compatibility with various brake systems, providing peace of mind for fleet operators and truck drivers. Its durable materials enhance the longevity of your braking components, reducing the frequency of maintenance and replacements. For high-quality Bendix OEM parts, Source One Parts Center is your best choice, delivering authentic components that ensure reliable performance on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.75 lb
