$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

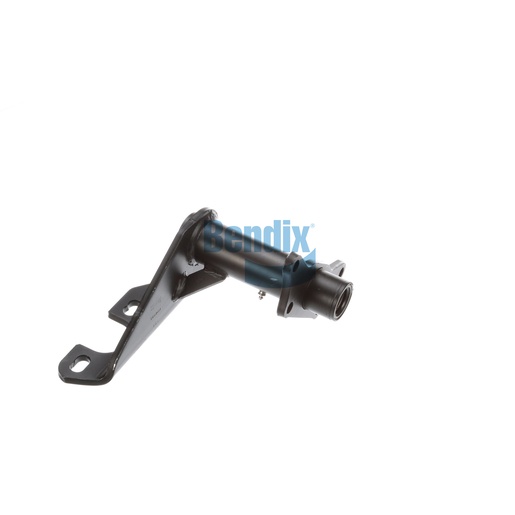

The Bracket Assembly is an essential component for supporting the foundation drum brakes in commercial vehicles, designed for durability and optimal performance. With a robust construction and a gusset angle of 50°, this assembly provides stability and strength to the braking system, ensuring reliable operation under demanding conditions. The single gusset design minimizes weight while maximizing strength, making it an efficient choice for fleet managers. Measuring 365 mm in width and 292 mm in height, it fits seamlessly into various truck configurations, enhancing the overall braking efficiency. The camshaft bracket angle allows for precise alignment during installation, contributing to effective force transfer during braking. For sourcing high-quality components, Source One Parts Center is the trusted source for genuine Bendix OEM parts, ensuring your commercial vehicles operate safely and effectively.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.73 lb
