$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

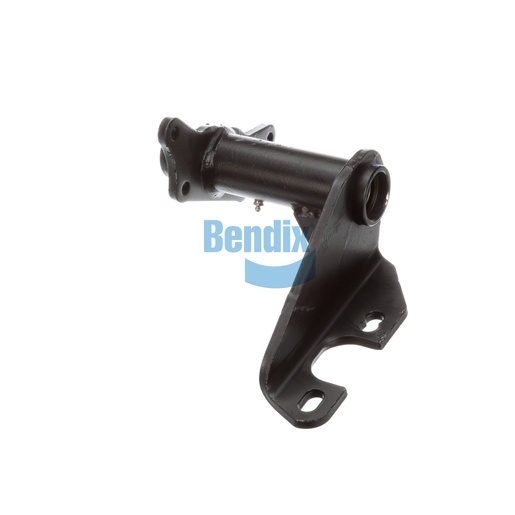

The Bendix Bracket Assembly is a critical part that provides essential support for air chambers and camshafts in heavy-duty truck braking systems. This assembly is designed with a full arm style and single gusset, allowing for greater stability and strength during operation. Manufactured in the United States, it meets stringent quality standards, ensuring durability and long-term performance. The bracket's compatibility with various truck models makes it an ideal choice for fleet operators seeking reliable maintenance solutions. By integrating this bracket assembly into your braking system, you can significantly enhance the overall safety and efficiency of your vehicle. Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring you receive high-quality components tailored to your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
