$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

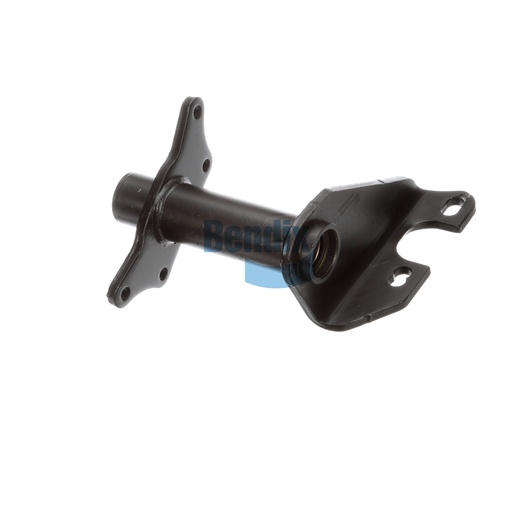

The Bracket Assembly from Bendix provides vital support for foundation drum brakes, ensuring that your braking system operates smoothly and effectively. Crafted from durable materials, this assembly is designed to withstand the rigors of commercial vehicle applications, providing exceptional strength and reliability. Its innovative design features single gussets and a full-arm style for enhanced stability, significantly improving the overall performance of your braking system. The assembly is easy to install, making it an ideal choice for fleet operators looking to minimize downtime and maintenance costs. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.81 lb
