$269.95
$323.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

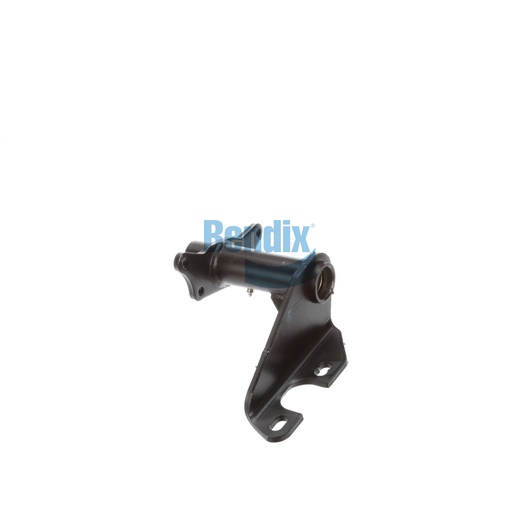

This Bracket Assembly is engineered to provide exceptional support for your vehicle's foundation drum brake system. With a single gusset design and a full arm style, this bracket ensures stability and durability under the harshest driving conditions. The assembly is constructed with a camshaft bracket angle of 70° CCW, making it suitable for various brake configurations. Its substantial dimensions and robust materials enhance its longevity, ensuring consistent brake performance over time. By choosing this bracket assembly, you can minimize maintenance downtime and enhance operational efficiency. Rely on Source One Parts Center to supply you with genuine Bendix OEM parts, guaranteeing that your commercial vehicle remains reliable and safe on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.7 lb
