$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

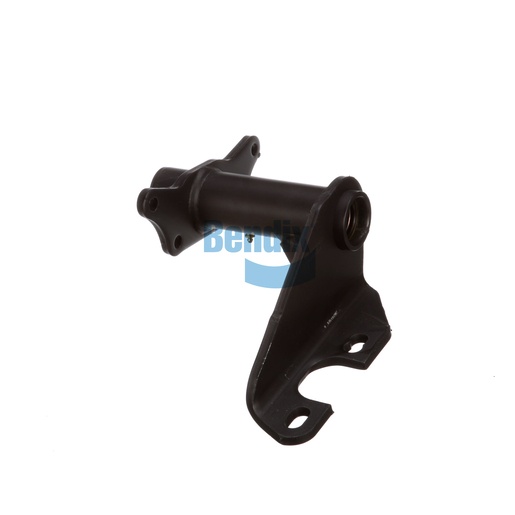

The Bendix Bracket Assembly is designed to provide robust support for air chambers and camshafts in heavy-duty braking applications. Its single gusset and full arm style construction ensure strength and stability, making it an ideal choice for commercial vehicles operating under demanding conditions. This assembly is engineered for easy installation and compatibility with a wide range of Bendix systems, facilitating a smooth integration into your vehicle's braking infrastructure. Made from high-quality materials, it guarantees durability and reliability, reducing the risk of failure and ensuring continuous performance. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best source, delivering top-quality components for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
76° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
