$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

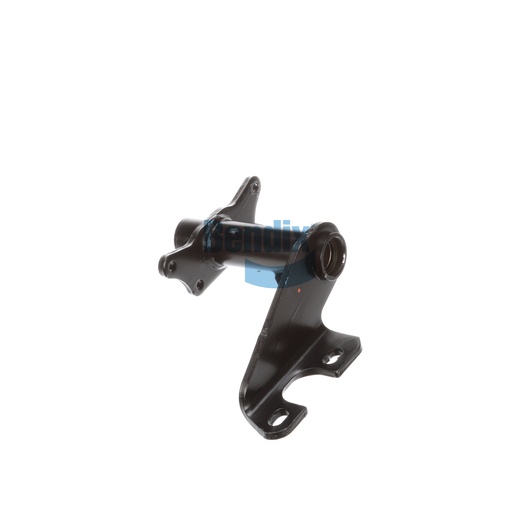

The Bracket Assembly from Bendix is designed to provide robust support for the air chamber and camshaft within the braking system of commercial vehicles. Featuring a single gusset design and crafted from high-quality materials, this assembly ensures stability and alignment of the braking components, enhancing the overall performance of the braking system. Its scalloped arm style allows for optimal installation, making maintenance easier and more efficient. By incorporating this bracket assembly into your vehicle, you significantly improve the integrity and safety of your braking system, ensuring reliable performance under various conditions. For genuine Bendix OEM parts that guarantee quality and reliability, Source One Parts Center is the best place to shop.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13 lb
