$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

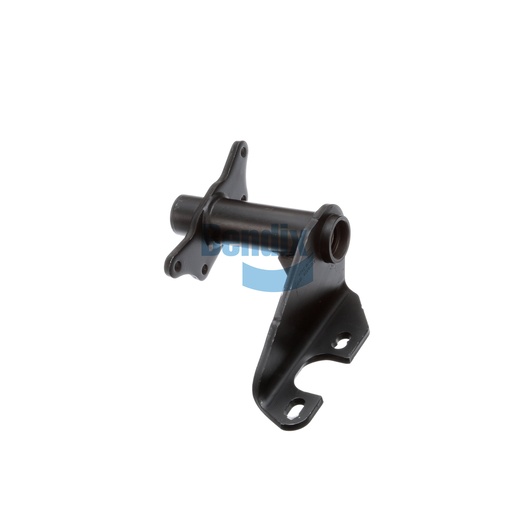

Optimize your braking system with the Bracket Assembly, engineered specifically for foundation drum brakes. This assembly features a full arm style and a single gusset, providing the necessary strength and support for effective braking. With a camshaft bracket angle of 104° CCW, it ensures precise alignment, significantly enhancing performance. Measuring 12 inches centerline to centerline and weighing 6.3 kg, it is robust enough to handle the demands of heavy-duty applications. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as the best option, delivering quality and reliability for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CCW
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.91 lb
