$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

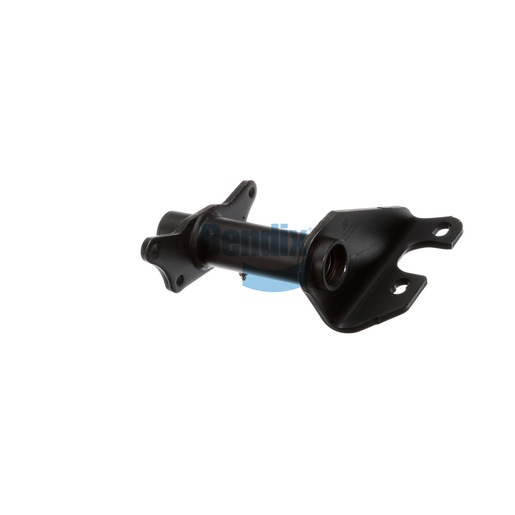

The Bendix K121933N Bracket Assembly is designed to provide robust support for air chambers and camshafts in commercial braking systems. Featuring a full arm style with a single gusset, this bracket ensures superior structural integrity and stability, crucial for maintaining effective braking performance. With a camshaft bracket angle of 104° CW and a centerline length of 11.50 inches, it offers versatility for various truck configurations. This assembly is built using durable materials that minimize wear and friction, promoting longevity and reliability. By incorporating this bracket into your vehicle, you enhance the overall performance of your braking system, contributing to safer driving conditions. When you need genuine Bendix OEM parts, Source One Parts Center is the ideal destination, dedicated to providing customers with exceptional quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
104° CW
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.66 lb
