K121949N

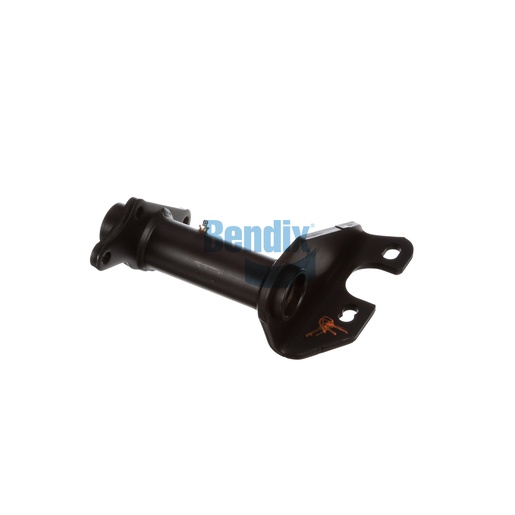

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to ensure the stability and performance of your vehicle's braking system. Manufactured in the United States, this assembly features a full arm style and a single gusset design that enhances durability and strength. With a length of 11.50 inches from centerline to centerline and a camshaft bracket angle of 312° CW, it allows for precise alignment and effective support for air chambers and camshafts. This part is essential for maintaining the effectiveness of your drum brakes, which is crucial for ensuring vehicle safety and control. By replacing outdated components with this genuine OEM part, you can enhance your braking system's efficiency and reliability. Source One Parts Center is your premier source for authentic Bendix parts, ensuring you receive quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Camshaft Bracket Angle
312° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
