$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

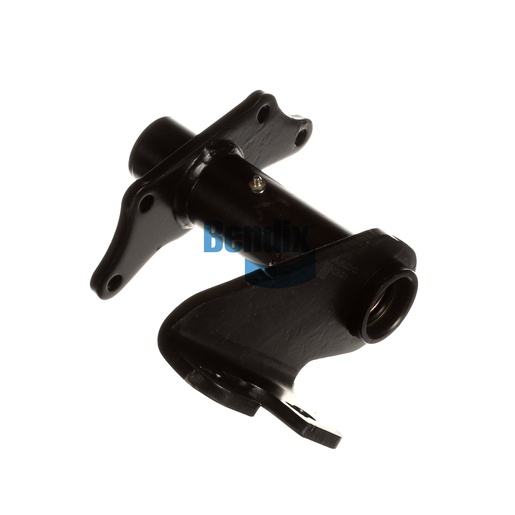

The Bracket Assembly from Bendix is expertly crafted to provide reliable support for air chambers and camshafts in commercial vehicles. Its robust design contributes to the overall efficiency of the braking system, ensuring that all components function smoothly under various conditions. With a width of 365 mm and a net weight of 6 kg, this assembly is built to endure the rigors of heavy-duty applications. Easy to install and maintain, it helps reduce downtime and enhances the overall safety of your fleet. For top-quality Bendix OEM parts, Source One Parts Center is the trusted source, committed to delivering only the best products for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Camshaft Bracket Angle
326° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.2 lb
