K121953N

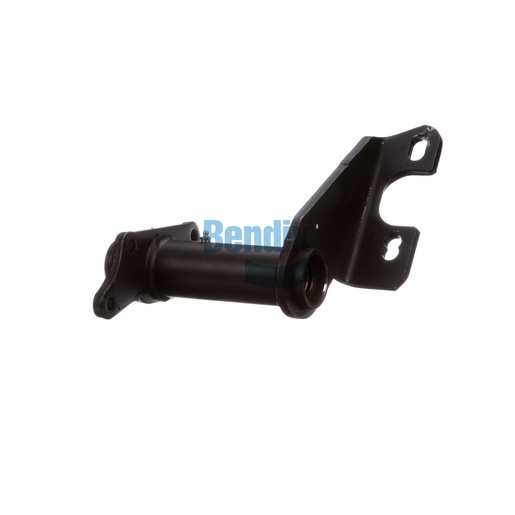

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is a crucial component of the foundation drum brake system, specifically designed to support air chambers and camshafts effectively. Constructed with a single gusset and an arm style that enhances structural integrity, this assembly provides the stability needed for optimal braking performance. Weighing 5.9 kg, it offers durability without compromising manageability for installation. The nylon bushings used in this assembly minimize friction, reducing wear and prolonging the lifespan of your braking components. For high-quality Bendix OEM parts, Source One Parts Center is the best source, ensuring you receive reliable components to keep your vehicle operating safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.50
Height
292.0 mm (11.5 in)
Length
292.0 mm (11.5 in)
Camshaft Bracket Angle
326° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
13.01 lb
