K122016N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

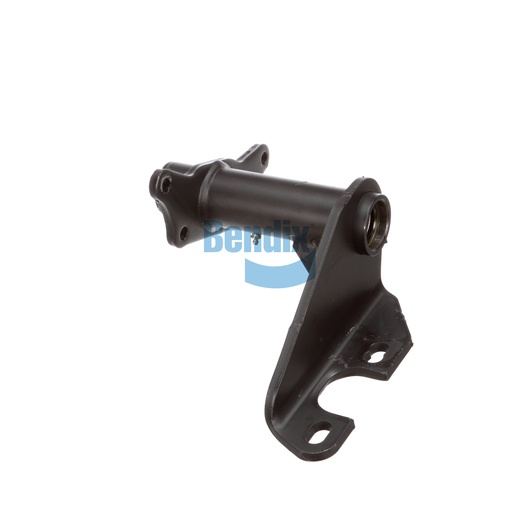

The Bracket Assembly from Bendix provides vital support for the foundation drum brakes in your commercial vehicle, ensuring stability and optimal performance during operation. With a full arm style and a gusset angle of 40°, this assembly is designed for maximum strength and durability. Measuring 11.56 inches in length and weighing 14.0 lbs, it is built to endure the rigors of heavy-duty applications. The assembly features a camshaft bracket angle of 66° CCW, allowing for precise alignment and effective braking performance. Easy to install, it helps minimize downtime, making it a wise choice for fleet maintenance. When you choose to purchase genuine Bendix OEM parts from Source One Parts Center, you can trust that you are getting quality components designed to enhance the longevity and performance of your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14 lb
