K122136N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

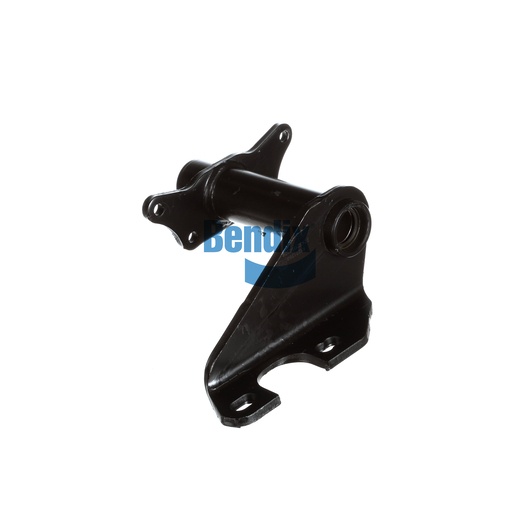

The Bracket Assembly is an essential component of your foundation drum brakes, designed to provide optimal strength and support. Featuring a full arm style and single gusset design, this assembly ensures durability during operation. With a camshaft bracket angle of 90° CCW and a slack length of 12 inches, it accommodates various applications efficiently. Weighing 6.4 kg, this assembly is crafted for the robust demands of commercial vehicles. Source One Parts Center is your best option for genuine Bendix OEM parts, ensuring you receive quality components for your braking system.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.00
Height
292.0 mm (11.5 in)
Length
305.0 mm (12.01 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.15 lb
