$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

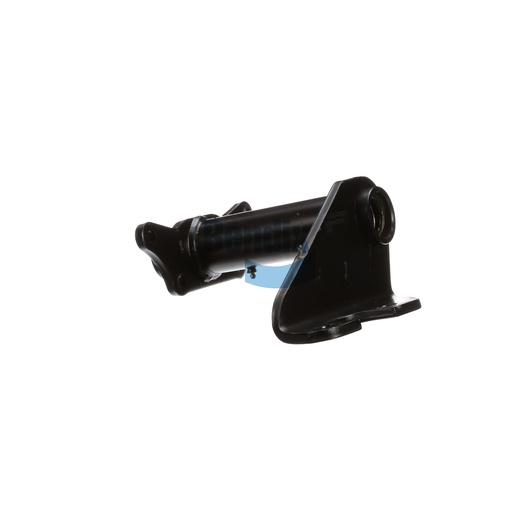

The Bracket Assembly is an essential component designed to provide robust support for air chambers and camshafts in foundation drum brake systems. This high-quality Bendix part features a single gusset and a full arm style, ensuring maximum stability and durability under heavy loads. With a camshaft bracket angle of 90° counterclockwise and a length of 13 inches, this assembly is engineered for precise alignment, enhancing the overall performance of your braking system. The bracket's weight of 14.65 lbs indicates its solid build quality, ensuring longevity and reliability even in the most demanding conditions. Installation is straightforward, making it a practical choice for fleet maintenance and repairs. The Bracket Assembly meets OEM standards, ensuring compatibility with a variety of commercial vehicles. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing the best selection for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.65 lb
