$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

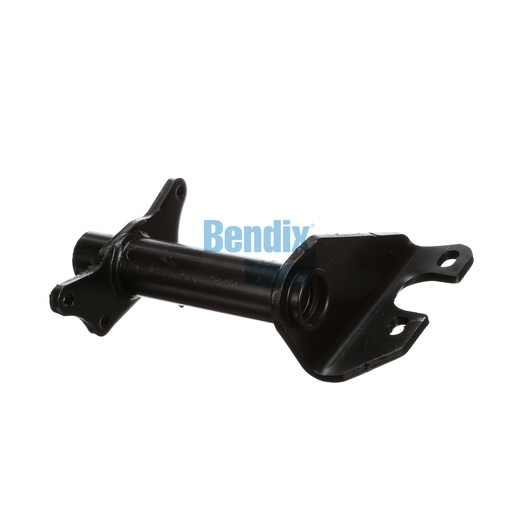

The Bendix Bracket Assembly is designed to provide reliable support for foundation drum brakes, ensuring optimal performance and safety. Weighing 6.6 kg, this assembly is crafted for durability and strength, making it an essential component for heavy-duty applications. Its precise engineering ensures that all brake components are securely held in place, contributing to consistent braking performance. Ideal for fleet operators and maintenance professionals, this bracket assembly is crucial for vehicle safety and reliability. For genuine Bendix parts, Source One Parts Center offers the best selection, ensuring you have access to high-quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
