$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

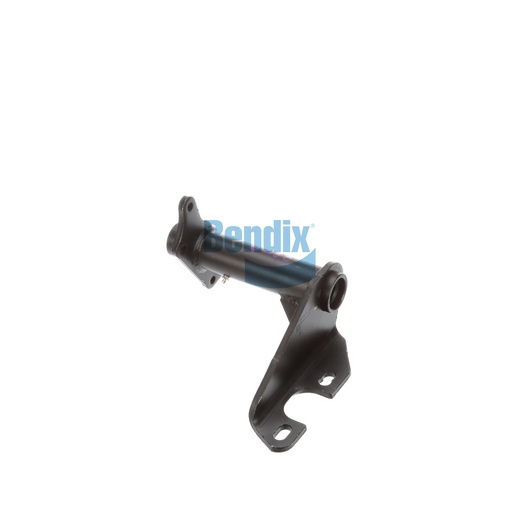

The Bracket Assembly from Bendix is designed to provide superior support for foundation drum brakes, making it a vital component in any commercial vehicle's braking system. This assembly is crafted with a single gusset and a full arm style, which enhances durability and performance under high stress. With a net weight of 6.7 kg and dimensions of 365.0 mm in width, 292.0 mm in height, and 343.0 mm in length, it is engineered to fit various truck models seamlessly. The camshaft bracket angle of 30° CCW ensures optimal alignment, contributing to the overall efficiency of the braking system. This assembly is not just about strength; it also facilitates easy installation, allowing for quicker repairs and less downtime. For those seeking dependable and long-lasting parts, Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
30° CCW
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.8 lb
