$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

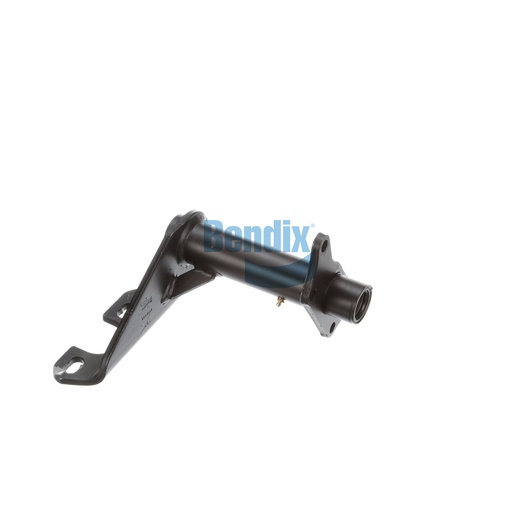

The Bendix Bracket Assembly is engineered to provide essential support for your vehicle's braking system, crucial for maintaining the overall integrity of heavy-duty applications. Designed with a single gusset and scalloped arm style, this bracket offers robust support while minimizing weight. Its precise dimensions ensure a perfect fit, facilitating straightforward installation and integration into existing systems. This assembly is built to endure the rigors of commercial use, ensuring long-lasting performance under demanding conditions. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the go-to choice, offering high-quality components that keep your vehicle operating at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
30° CW
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.9 lb
