This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

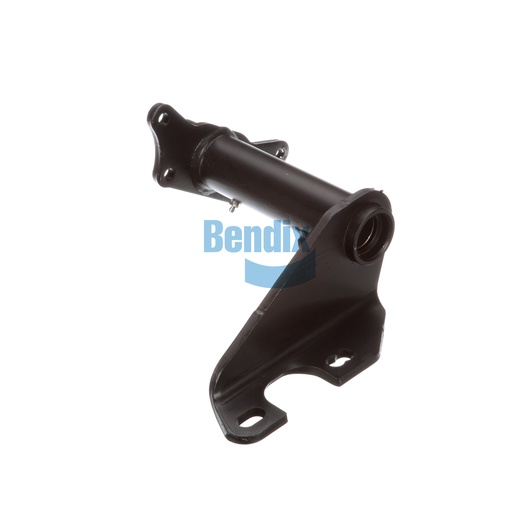

The Bracket Assembly from Bendix is a critical component for foundation drum brakes, designed to enhance the durability and performance of your braking system. Made in the USA, this assembly features a robust full arm style with a single gusset, ensuring it can withstand the rigorous demands of commercial applications. The bracket's precise dimensions, including a camshaft bracket angle of 54° CCW and a centerline length of 13.5 inches, allow for optimal alignment and function. This product is engineered to simplify installation and maintenance while providing lasting reliability. The assembly's weight of 14.75 lbs signifies its sturdy construction, making it a dependable choice for fleet operators. When you choose Source One Parts Center for your Bendix OEM parts, you're assured of purchasing genuine components that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
54° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.75 lb
