K122309N

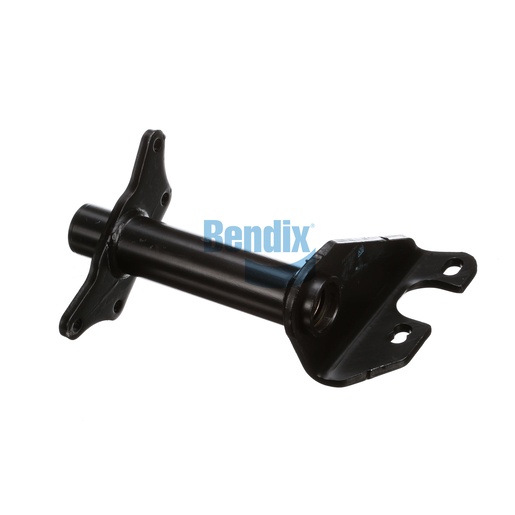

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for foundation drum brakes, designed to provide robust support for air chambers and camshafts in commercial vehicles. This assembly features a single gusset design and a full arm style, ensuring optimal stability and performance under heavy-duty conditions. Weighing 5.4 kg, it is crafted from high-quality materials, promoting durability and longevity while reducing wear on braking components. This bracket assembly is engineered for easy installation and compatibility with various drum brake systems, making it a versatile choice for fleet operators. By investing in this genuine Bendix part, you enhance your vehicle's braking efficiency and safety, ensuring reliable operation. Source One Parts Center is the premier destination for authentic Bendix OEM parts, providing you with quality and service you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
11.9 lb
