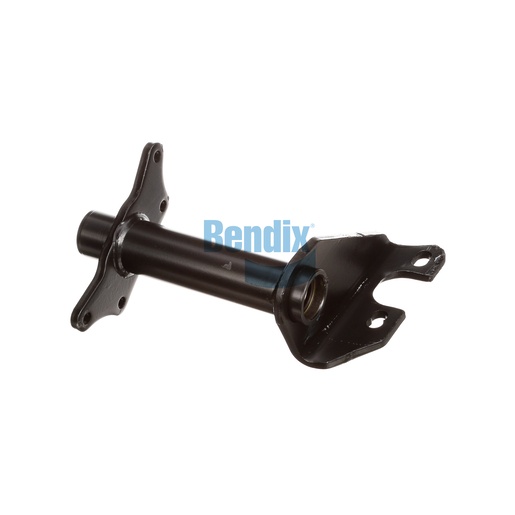

K122311N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a critical support component designed for foundation drum brakes in commercial vehicles. This assembly, made in the USA, features a full arm style with a single gusset, ensuring optimal strength and reliability during operation. With a camshaft bracket angle of 56° CW and a length of 13.50 inches, it is engineered for a precise fit across various applications. The durable construction minimizes wear and enhances the overall performance of your braking system, making it essential for fleet maintenance. When it comes to sourcing essential parts, Source One Parts Center is the best place to find genuine Bendix OEM components that ensure your commercial vehicles are equipped for safety and efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.5 lb
