$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

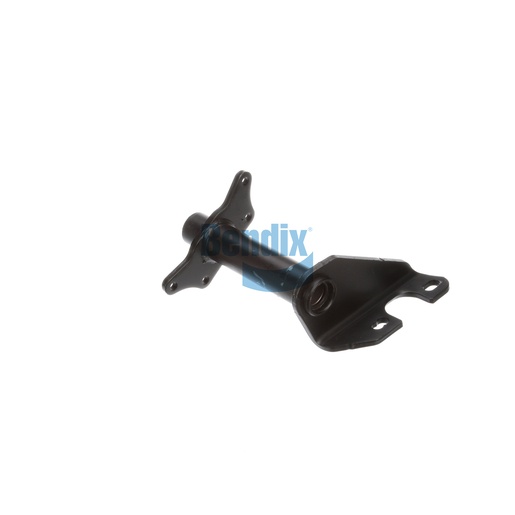

The Bendix Bracket Assembly is a vital part of the drum brake system, engineered to enhance the performance and reliability of your vehicle's braking capabilities. Manufactured in the United States, this assembly features a single gusset and a full arm design, providing exceptional support for air chambers and camshafts. With a camshaft bracket angle of 56 degrees clockwise, it ensures optimal engagement during braking. This assembly measures 14.37 inches in width and 11.5 inches in height, weighing 13.01 pounds, making it both lightweight and durable. Crafted to withstand the rigors of heavy-duty applications, it is a must-have for any commercial fleet. For sourcing genuine Bendix OEM parts, Source One Parts Center is the leading choice, delivering quality and reliability you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
13.01 lb
