K122314N

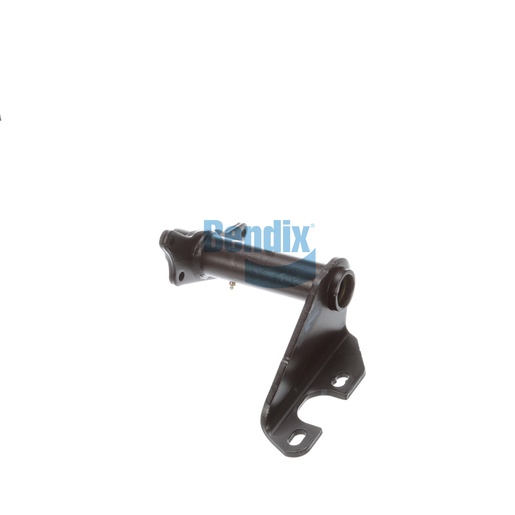

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a fundamental part of the foundation drum brake system, designed to provide essential support and alignment for critical braking components. With a full arm style and a camshaft bracket angle of 60° counterclockwise, this assembly ensures precise positioning for optimal brake performance. The durable construction includes a basic weld set length of 1.063 inches, ensuring it can withstand the rigors of heavy-duty applications. This assembly is engineered for versatility, fitting a range of vehicles while maintaining structural integrity. For those in need of reliable brake components, Source One Parts Center is your best resource for genuine Bendix OEM parts, delivering quality and performance you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.41 lb
