K122315N

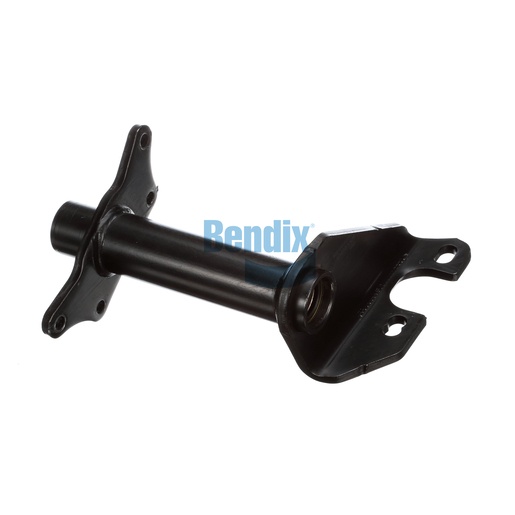

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of your Bendix drum brake system, engineered to provide optimal support and alignment for effective braking performance. This high-quality assembly features a full arm style and is built with nylon bushings to ensure durability and smooth operation. The design includes a camshaft bracket angle of 60° CW and a slack length of 13.50 inches, guaranteeing precise positioning for your braking components. Weighing approximately 14.5 pounds, this assembly is robust yet lightweight, facilitating easy installation and maintenance. For those in need of genuine Bendix OEM parts, Source One Parts Center is the ideal choice for sourcing high-quality components that enhance the efficiency and safety of your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.5 lb
