$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

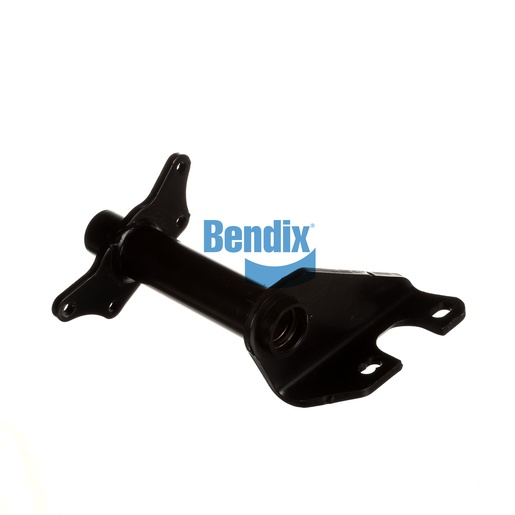

The Bracket Assembly is essential in the foundation drum brake system, providing vital support and alignment for brake components. This high-quality assembly is designed for durability and efficiency, ensuring reliable braking performance in commercial vehicles. Its robust construction makes installation straightforward, allowing for quick maintenance and upgrades. The design minimizes weight without sacrificing strength, contributing to better fuel efficiency for your fleet. This bracket assembly meets or exceeds OEM specifications, guaranteeing safety and performance on the road. For sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal destination, offering top-tier components to keep your commercial vehicles operating at peak performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
15 lb
