$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

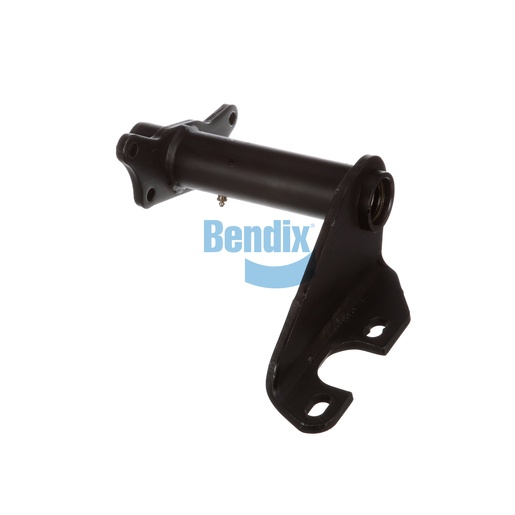

The Bracket Assembly is a vital component designed to support your truck's drum brake system effectively. This high-quality bracket features a full arm style and is constructed from durable materials to ensure a secure fit and stable operation. With a camshaft bracket angle of 70° CCW, it is engineered to provide optimal alignment and function, enhancing the overall performance of your braking system. The nylon bushings included in the assembly minimize friction and wear, extending the lifespan of your brake components. Weighing 6.6 kg (14.55 lb), this bracket assembly is designed for easy installation and maintenance, making it an ideal choice for heavy-duty applications. For reliable and genuine Bendix OEM parts, Source One Parts Center is your go-to supplier, ensuring quality and performance with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.55 lb
