$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

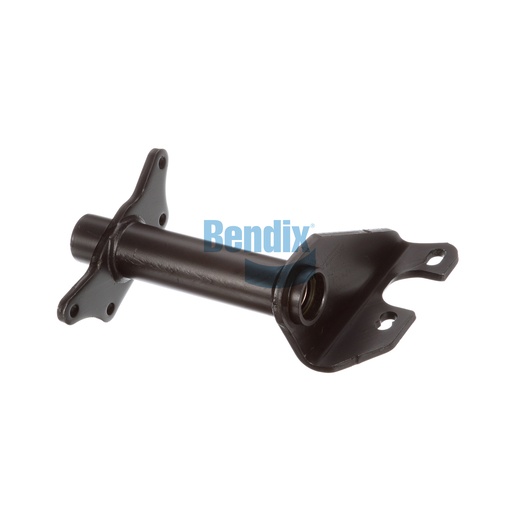

The Bendix Bracket Assembly is designed for foundation drum brakes, ensuring optimal support and alignment for braking components in commercial vehicles. This assembly is made in the USA and features a full arm style for enhanced durability and stability. Weighing 6.6 kg (14.5 lbs), it is engineered to withstand the demands of heavy-duty applications, providing reliable performance under various conditions. Its design allows for easy installation and maintenance, making it a practical solution for fleet operators looking to enhance their vehicle's braking system. For those in need of genuine Bendix OEM parts, Source One Parts Center is the go-to source for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.5 lb
