$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

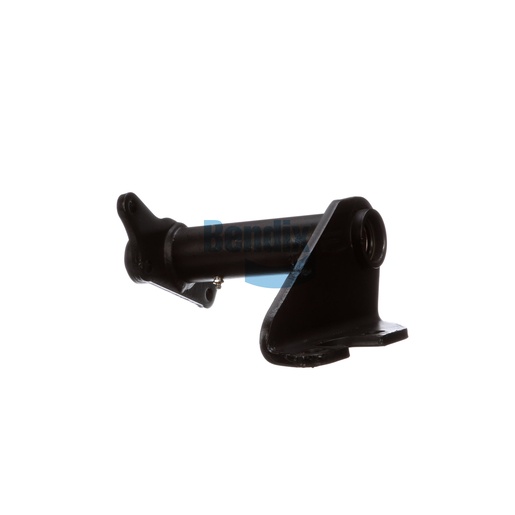

This Bracket Assembly is a vital part of Bendix's foundation drum brake system, engineered to deliver exceptional performance and reliability. Originating from the United States, it is designed with a full arm style and a gusset that enhances its strength and stability, making it suitable for various heavy-duty applications. With a length of 13.50 inches and a camshaft bracket angle of 70° counterclockwise, this assembly supports air chambers and camshafts effectively, contributing to the safe braking operation of commercial vehicles. The precision in its design minimizes wear and enhances the lifespan of the component, ensuring that your braking system operates at peak efficiency. Trust Source One Parts Center to provide you with authentic Bendix OEM parts, ensuring your vehicle's braking system is always in top condition.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.8 lb
