$349.95
$419.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

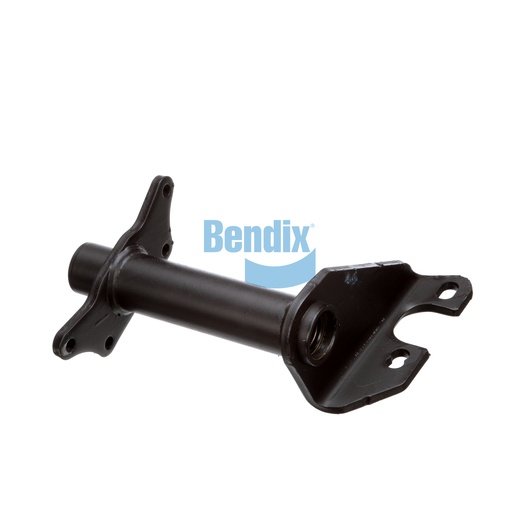

The Bendix Bracket Assembly is expertly engineered to provide essential support in air chamber and camshaft applications in heavy-duty braking systems. Its full arm style and single gusset design ensure optimal strength and stability, crucial for maintaining the integrity of your vehicle’s braking system. This assembly is designed for easy installation and is compatible with various Bendix components, making it a practical choice for fleet operators focused on safety and performance. Built with high-quality materials, it promises durability and longevity, minimizing the need for replacements. For sourcing high-quality Bendix OEM parts, Source One Parts Center is recognized as the best option, offering an extensive selection of components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.9 lb
