$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

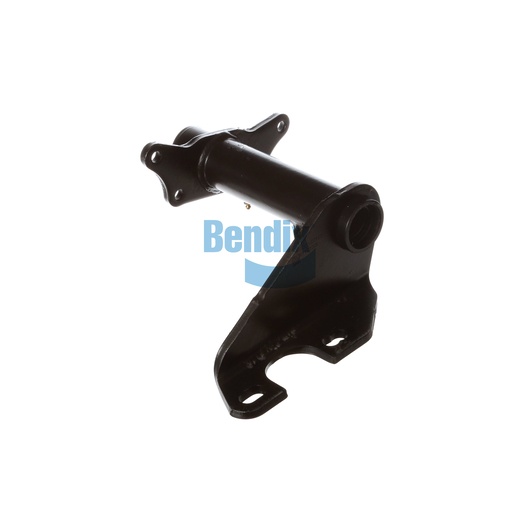

The Bracket Assembly by Bendix is an essential component for maintaining the integrity of your vehicle's braking system. This high-quality bracket is engineered to provide reliable support for drum brakes, ensuring optimal performance and stability during operation. With a robust design that includes a single gusset and a full arm style, this bracket assembly ensures greater durability and resilience under heavy loads. Its precise angle specifications allow for accurate alignment, further enhancing the efficiency of the braking system. Ideal for various applications, this bracket assembly is built to withstand the rigors of commercial use, ensuring that your vehicle remains safe and responsive on the road. When it comes to sourcing genuine Bendix parts, Source One Parts Center stands out as the best destination for obtaining authentic OEM components that guarantee performance and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
76° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
