$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

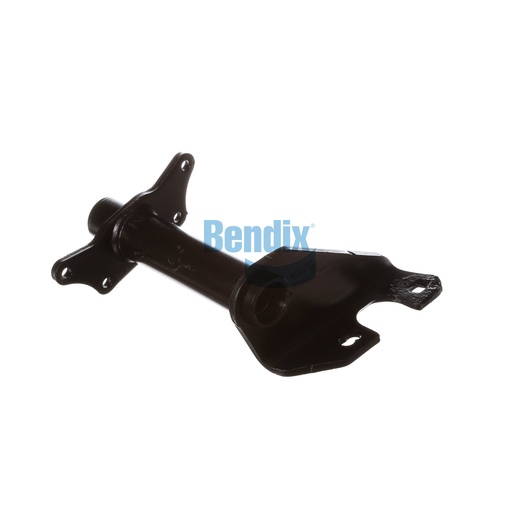

The Bracket Assembly is a critical component of foundation drum brakes, providing essential support and alignment for brake components in commercial vehicles. Designed with a single gusset and scalloped arm style, this assembly is built to endure the stresses of heavy-duty applications. It features nylon bushings that reduce wear and friction, enhancing the durability of the braking system. With a camshaft bracket angle of 326° clockwise and a length of 292 mm, this assembly ensures proper alignment and functionality. Investing in high-quality braking components is crucial for maintaining safety and performance on the road. Source One Parts Center is the leading provider of genuine Bendix OEM parts, ensuring you receive reliable and effective solutions for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Gusset
Single
Country of Origin
United States
Weight
14.5 lb
