K122346N

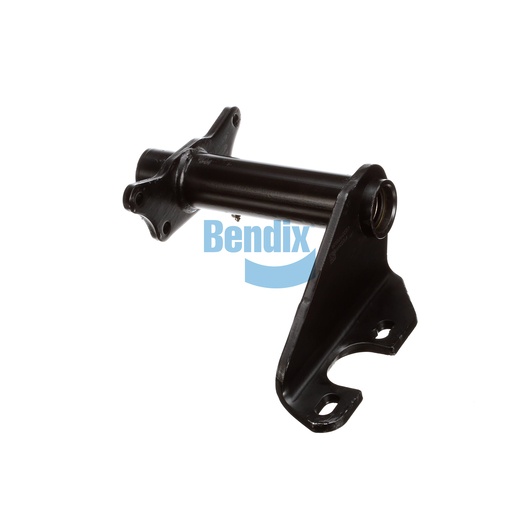

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is specifically designed for foundation drum brakes, providing essential support for the braking system. With a robust full arm style and a camshaft bracket angle of 84° CCW, this assembly ensures secure mounting of critical components, enhancing the overall stability of your braking system. Its dimensions of 343 mm in length and a net weight of 6.6 kg make it well-suited for heavy-duty applications, providing the strength and durability required for commercial vehicles. Constructed from high-quality materials, this bracket assembly guarantees longevity and resistance to wear, essential for maintaining safety on the road. For those in need of authentic Bendix OEM parts, Source One Parts Center is the best choice, ensuring you receive reliable components tailored to your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.50
Height
292.0 mm (11.5 in)
Length
343.0 mm (13.5 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Country of Origin
United States
Weight
14.55 lb
